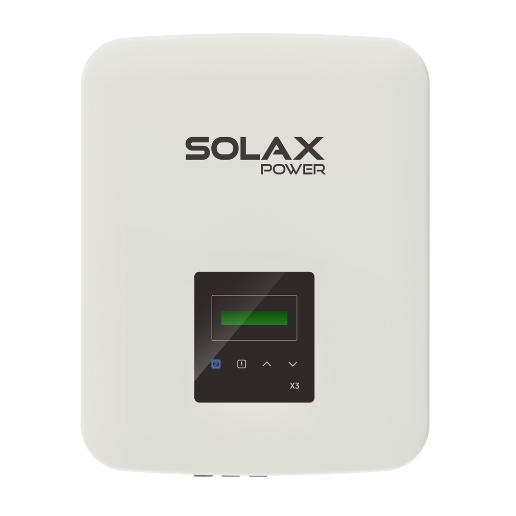

三相逆变器
X3-MIC G2
-
3kW / 4kW / 5kW / 6kW / 8kW / 10kW / 12kW /15kW
X3-MIC G2系列采用IP66防护等级设计，具备超高功率密度，为光伏系统提供紧凑可靠的解决方案。产品搭载智能负载管理技术，完美适配电动汽车充电桩、热泵等现代家用设备，实现全屋能源一体化智能管理，优化能耗效率。
产品优势
X3-MIC G2 拥有高达98%的转换效率，支持200%直流超配，确保发电效益最大化。其每路MPPT电流最高可达32A，结合内置全局扫描技术与宽电压MPPT范围，保障系统稳定高效运行。内置的输出功率控制功能进一步优化了能源管理，特别适配大功率光伏组件应用场景。
智能设计
24小时全天候监测（支持WiFi/有线/4G网络）
智能负载管理（适配热泵、智能电动汽车充电桩等设备）
可靠安全
交直流侧可选配II型电涌保护器
支持选配AFCI电弧故障保护
IP66防护等级
灵活适配
低压启动与超宽MPPT电压范围
内置输出功率控制功能
超高功率密度设计
高效运行
转换效率高达98.5%
每路MPPT电流达32A
支持200%直流超配及110%交流过载输出
内置全局MPP扫描功能
Product Parameters
-
X3-MIC-3K-G2-
PV INPUT
Max. recommended PV array power 6 kWp MPPT voltage range 120 ~ 980 V No. of MPP trackers / strings per MPP tracker 2 / (1 / 1) Max. input current per MPPT 16 A / 16 A -
AC OUTPUT
Rated output power 3000 W Rated AC voltage 3 / N / PE, 220 / 380 V
3 / N / PE, 230 / 400 V
-
GENERAL
Ingress protection IP66 Dimensions (W /H / D) 342 × 434 × 144.5 mm
Net Weight 15.5 kg
-
-
X3-MIC-4K-G2
-
PV INPUT
Max. recommended PV array power 8 kWp MPPT voltage range 120 ~ 980 V No. of MPP trackers / strings per MPP tracker 2 / (1 / 1) Max. input current per MPPT 16 A / 16 A -
AC OUTPUT
Rated output power 4000 W Rated AC voltage 3 / N / PE, 220 / 380 V
3 / N / PE, 230 / 400 V
-
GENERAL
Ingress protection IP66 Dimensions (W /H / D) 342 × 434 × 144.5 mm
Net Weight 15.5 kg
-
-
X3-MIC-5K-G2
-
PV INPUT
Max. recommended PV array power 10 kWp MPPT voltage range 120 ~ 980 V No. of MPP trackers / strings per MPP tracker 2 / (1 / 1) Max. input current per MPPT 16 A / 16 A -
AC OUTPUT
Rated output power 5000 W Rated AC voltage 3 / N / PE, 220 / 380 V
3 / N / PE, 230 / 400 V
-
GENERAL
Ingress protection IP66 Dimensions (W /H / D) 342 × 434 × 144.5 mm
Net Weight 15.5 kg
-
-
X3-MIC-6K-G2
-
PV INPUT
Max. recommended PV array power 12 kWp MPPT voltage range 120 ~ 980 V No. of MPP trackers / strings per MPP tracker 2 / (1 / 1) Max. input current per MPPT 16 A / 16 A -
AC OUTPUT
Rated output power 6000 W Rated AC voltage 3 / N / PE, 220 / 380 V
3 / N / PE, 230 / 400 V
-
GENERAL
Ingress protection IP66 Dimensions (W /H / D) 342 × 434 × 144.5 mm
Net Weight 15.5 kg
-
-
X3-MIC-8K-G2
-
PV INPUT
Max. recommended PV array power 16 kWp MPPT voltage range 120 ~ 980 V No. of MPP trackers / strings per MPP tracker 2 / (1 / 1) Max. input current per MPPT 16 A / 16 A -
AC OUTPUT
Rated output power 8000 W Rated AC voltage 3 / N / PE, 220 / 380 V
3 / N / PE, 230 / 400 V
-
GENERAL
Ingress protection IP66 Dimensions (W /H / D) 342 × 434 × 156 mm
Net Weight 17.0 kg
-
-
X3-MIC-10K-G2
-
PV INPUT
Max. recommended PV array power 20 kWp MPPT voltage range 120 ~ 980 V No. of MPP trackers / strings per MPP tracker 2 / (1 / 1) Max. input current per MPPT 16 A / 16 A -
AC OUTPUT
Rated output power 10000 W Rated AC voltage 3 / N / PE, 220 / 380 V
3 / N / PE, 230 / 400 V
-
GENERAL
Ingress protection IP66 Dimensions (W /H / D) 342 × 434 × 156 mm
Net Weight 17.0 kg
-
-
X3-MIC-12K-G2
-
PV INPUT
Max. recommended PV array power 24 kWp MPPT voltage range 120 ~ 980 V No. of MPP trackers / strings per MPP tracker 2 / (2 / 1) Max. input current per MPPT 32 A / 16 A -
AC OUTPUT
Rated output power 12000 W Rated AC voltage 3 / N / PE, 220 / 380 V
3 / N / PE, 230 / 400 V
-
GENERAL
Ingress protection IP66 Dimensions (W /H / D) 342 × 434 × 156 mm
Net Weight 18.0 kg
-
-
X3-MIC-15K-G2
-
PV INPUT
Max. recommended PV array power 30 kWp MPPT voltage range 120 ~ 980 V No. of MPP trackers / strings per MPP tracker 2 / (2 / 1) Max. input current per MPPT 32 A / 16 A -
AC OUTPUT
Rated output power 15000 W Rated AC voltage 3 / N / PE, 220 / 380 V
3 / N / PE, 230 / 400 V
-
GENERAL
Ingress protection IP66 Dimensions (W /H / D) 342 × 434 × 156 mm
Net Weight 18.0 kg
-
